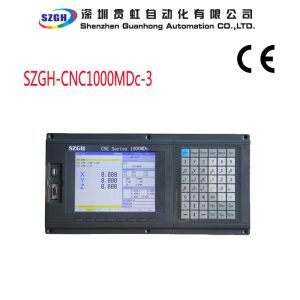

Professional Ethernet CNC Router Controller 8 Inch Real Color LCD Displayer

Name: Professional Ethernet CNC Router Controller 8 Inch Real Color LCD Displayer
Brand: SZGH
Price: 1 USD

Brand Name : SZGH

Model Number : SZGH-CNC1000MDc-3

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1 set

Price : negotiation

Payment Terms : TT in advance / Western Union / Paypal /LC/Alipay/Creditcard

Supply Ability : 300 sets per month

Delivery Time : within 3-5 days upon receipt of full payment

Packaging Details : Packaged with international standard by carton or wooden

weight : 13

Displayer : 8 inch real color LCD

User store room : 32Mb

Axis : 3 axis

Dimension(L*W*H) : 512*205*128

Contact Now

Professional Ethernet CNC Router Controller 8 Inch Real Color LCD Displayer

SZGH-CNC1000MDc-3 is professional 3 axis CNC router controller Which can control 3 feeding axes,two anglog spindles,2ms interpolation in high speed,1um precision,which obviously improve the efficiency ,precision and surface quality of processing parts. It supports Macro function & PLC function.The command function is powerful , conventient and flexible programming,thie model is with absolute type control.

Feature

1) 3 Axis standard and updated series CNC router controller
2) CNC1000MDc series with absolute value type ,able to remember currect work position once power off
3) 800 x 600 8.4 inch real color LCD displayer ,customized interface logo
4) Support PLC and macro function, ARM core, and DSP , FPGA
5) The max speed is 300m/min, feeding speed is 150m/min
6) Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing
7) High anti-jamming switch power(220VAC -> 24VDC)
8) 64MB Memory , 32Mb user store room
9) With USB interface,it supports file operation in flash disk,system configuration and software upgrade
10) Analog voltage output of 0~10V in two channels,support double spindles
11) 32 bits high performance, low power consumption industrial grade ARM microprocessor.
12) I/O : 56X32 , user can be edited freely I/O 24X24
13) cutter offset : C
14) English menu, program and interface, full screen edition
Application : CNC Boring mchine,CNC wood working machine,CNC Milling machinery , CNC drilling machinery , and specially automatic equipment

Professional Ethernet CNC Router Controller 8 Inch Real Color LCD Displayer

We can support Total CNC Control System!!!

Professional Ethernet CNC Router Controller 8 Inch Real Color LCD Displayer
